家用電梯

通快曳引式家用電梯采用高集成智能型控制系統，制動平穩、噪音低;轎廂設計靈活多樣，可與不同風格的室內家裝融合一體。不僅提升了建筑物的形象，更為居家主人創造出舒適亮麗的乘坐空間。

數量:

詢價

產品說明

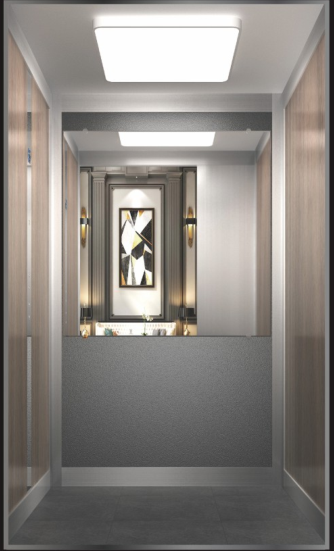

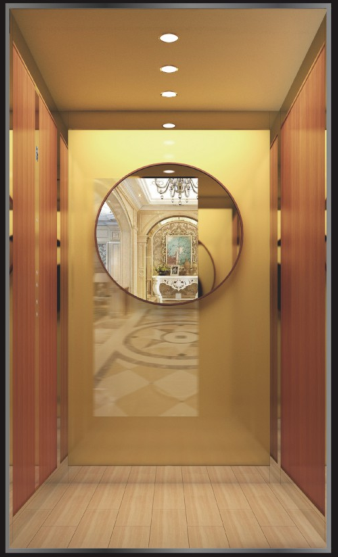

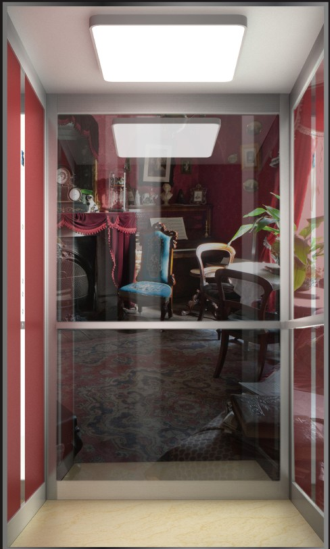

The car of TONGKUAT Home Elevator combines various home styles, a various design styles, and there is always an exclusive to match your home style.

Technical support:

· Comply with national home elevator standard

· Dozens of security protection standard function, more thoughtful security configuration options

· The standard ARD emergency leveling function is provided. The car will return to the nearest floor automatically

· One-click call function to ensure the safety of users

· IOT system cloud storage, real-time remote monitoring of operating conditions, forewamed is forearmed

· L aminated alass shaft is closed. explosion-proof broken

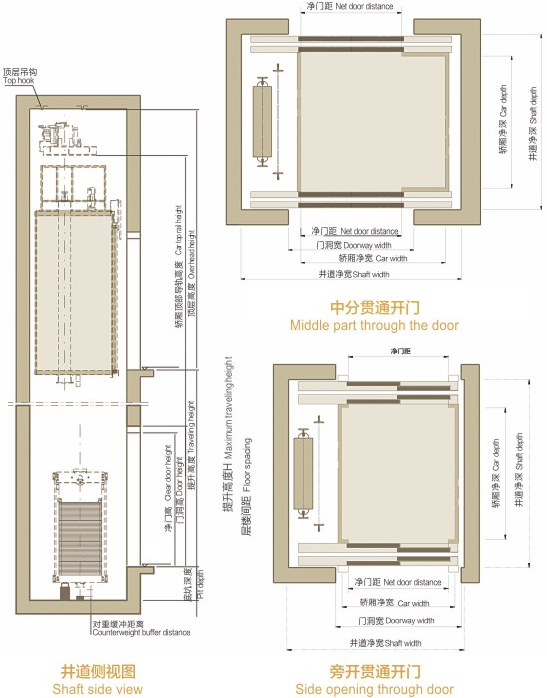

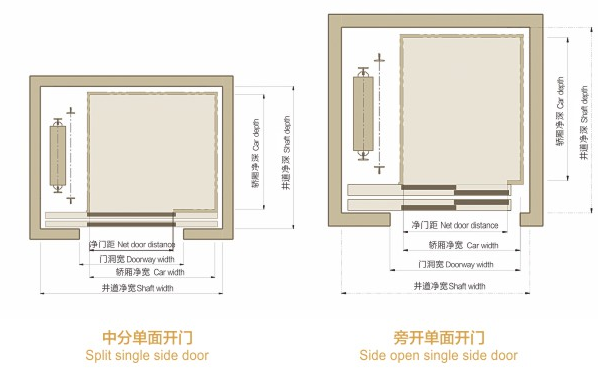

Civil engineering drawing of concrete shaft

Civil engineering drawing of concrete shaft

Table of technical parameters of automatic intermediate door domestic ladder
Load/number	Speed	minimum shaft size	Car net size	Oper door size	Top height	Lifting height	Pit depth
320KG/4	0.4	1550*1350	105011002100	700*2000	≥2800	≤12000	≥200
400KG/5	0.4	1750*1350	120011002100	800*2000	≥2800	≤12000	≥200

Table of technical parameters of automatic side door ladder for household use
Load/number	Speed	minimum shaft size	Car net size	Oper door size	Top height	Lifting height	Pit depth
320KG/4	0.4	1250*1440	75011002100	700*2000	≥2800	≤12000	≥200
400KG/5	0.4	1400*1400	90011002100	800*2000	≥2800	≤12000	≥200

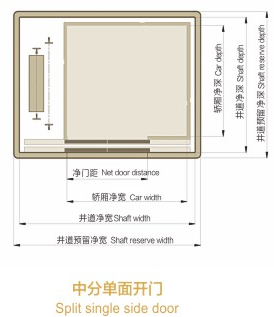

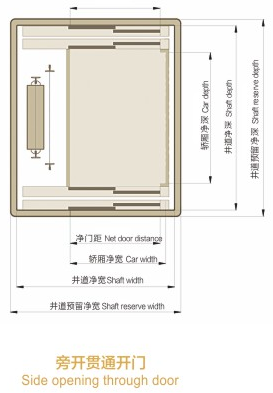

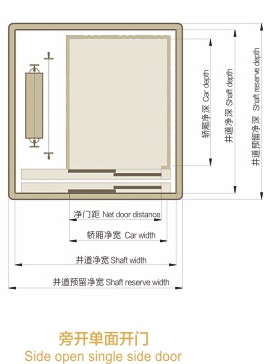

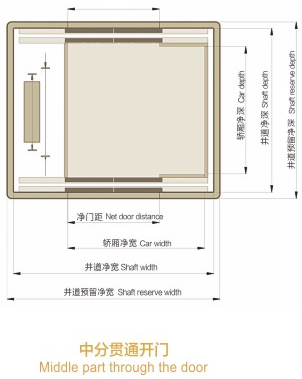

Civil construction drawing of aluminum alloy shaft

Civil construction drawing of aluminum alloy shaft

Table of technical parameters of automatic intermediate door domestic ladder
Load/number	Speed	minimum shaft size	Car net size	Oper door size	Top height	Lifting height	Pit depth
320KG/4	0.4	1680*1470	105011002100	700*2000	≥2800	≤12000	≥200
400KG/5	0.4	1880*1470	120011002100	800*2000	≥2800	≤12000	≥200

Table of technical parameters of automatic side door ladder for household use
Load/number	Speed	minimum shaft size	Car net size	Oper door size	Top height	Lifting height	Pit depth
320KG/4	0.4	1380*1520	75011002100	700*2000	≥2800	≤12000	≥200
400KG/5	0.4	1530*1520	90011002100	800*2000	≥2800	≤12000	≥200
